Single shaft shredding machine

PRODUCT DESCRIPTION

Single shaft auto shredder is one of the most widely used crushing equipment. Generally, materials can be delivered directly without additional feeding system. Equipped with large capacity special-shaped hopper and hydraulic pushing system, it can effectively prevent overhead and channeling of materials and ensure a fast, efficient and low-noise crushing process. The low-speed rotor combined with the cutter shaft structure with adjustable cutting clearance makes the crushing of bundled packaging, long strip, reel and winding materials easier. Low speed, high torque; All imported blades; Hydraulic pushing system; Swing arm installation; The micro switch.

Product advantage

• 1. Low speed, high torque
• 2. Low noise and dust
• 3. Hydraulic pushing system, swing arm forced feeding structure
• 4.90 ° turnover, higher utilization rate of knife body (one knife can be used four times)
• 5. Reducer swing arm mounting structure, microswitch monitoring, protecting internal gears and motors
• 6. Feeding test 2 ~ 4 hours before delivery to ensure equipment reliability
• 7. All imported SKD 11, D 2, DC 53 and ASP 60 blades have high strength, wear resistance and long service life

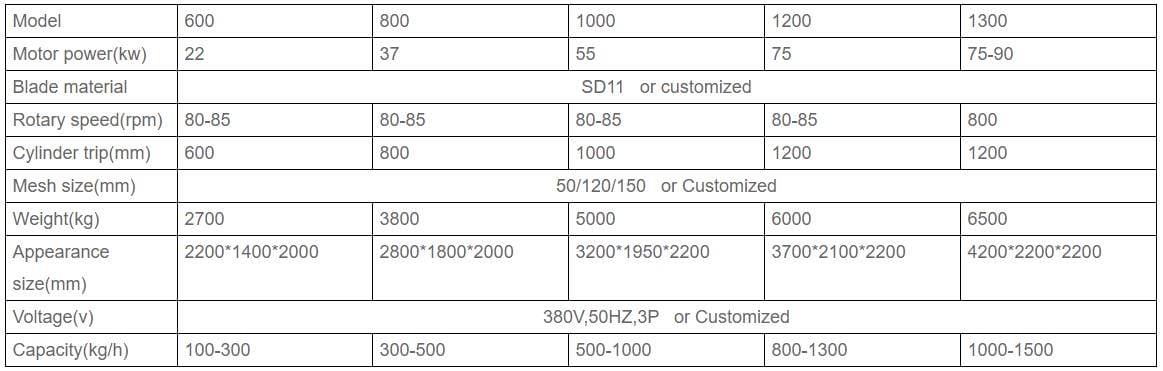

Product parameter
