Sand washing machine

PRODUCT DESCRIPTION

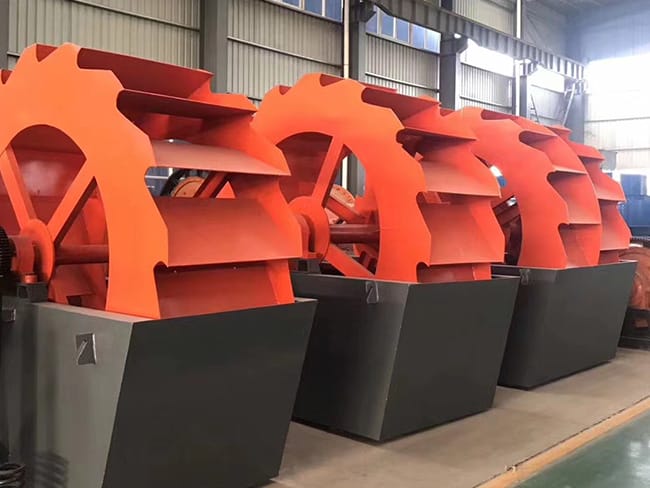

The wheel bucket sand washing machine is mainly divided into single wheel bucket sand washing machine, double wheel bucket sand washing machine and three wheel bucket sand washing machine. It is used for washing and dewatering of building sand and stone. It has high cleaning height, reasonable structure, large output, less sand loss in the process of sand washing, especially its transmission part is isolated from water and sand, so its failure rate is much lower than the current commonly used sand washing machine, which is the choice of upgrading and replacement of domestic sand washing industry.

Fodamon sand washing machine is made of special materials, which can resist wear and corrosion, make it run normally in any harsh environment, and greatly extend its service life; in addition, the energy-saving effect of sand washing machine is also very significant.

Working Principle

During operation, the motor drives the impeller to rotate slowly after decelerating through the V-belt, reducer and gear. The sand enters the washing tank from the feeding tank, rolls under the drive of the impeller, and grinds with each other to remove the impurities covering the surface of the sand and destroy the water vapor layer covering the sand, so as to facilitate dehydration. At the same time, water is added to form a strong water flow to timely remove the impurities and foreign matters with small specific gravity, And discharge from the overflow outlet washing tank to complete the cleaning function. The clean sand is taken away by the blade, and the sand is poured into the discharge chute from the rotating impeller to complete the cleaning function of the sand.

Product advantage

• 1. adapt to the material, widely used. The sand washing machine can handle the materials within 0-30mm, and can wash the soil and ash powder on the materials into clean materials.
• 2. Novel structure and high sand washing efficiency. This machine has the advantages of simple structure, easy maintenance and high washing efficiency.
• 3. Stable performance and assured quality. Complete specifications, small footprint, low investment cost.
• 4. Good sand washing quality and high purity. It can greatly reduce the content of water, mud and impurities in sand and improve the price of finished sand.

Product parameter
