Applicable materials:Widely used in a variety of block, granular, powdery material short distance conveying.
Application scope: Widely used in a variety of block, granular, powdery material short distance conveying.

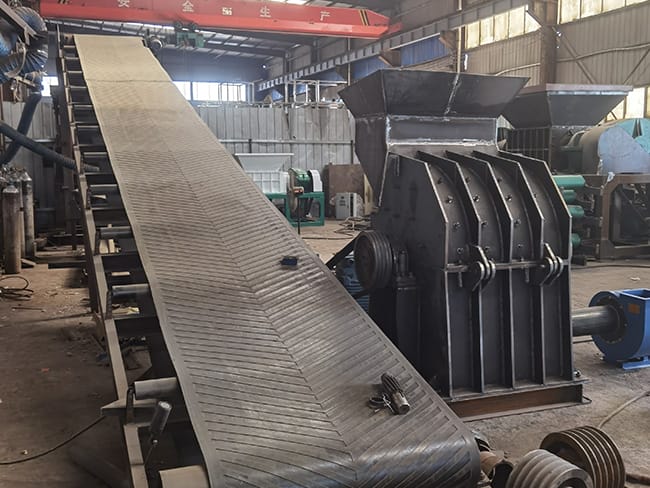

Belt conveyor has the advantages of large conveying capacity, simple structure, convenient maintenance, standardized components, etc. According to the requirements of the conveying process, it can be transported by a single set, or by several sets or by other conveying equipment to form a horizontal or inclined conveying system, so as to meet the needs of different types of operation lines. In addition to the belt conveyor, the conveyor in our factory also produce Mobile belt conveyor, Screw conveyor, High angle conveyor, Chain conveyor, Mesh belt conveyor, etc.
The belt conveyor is mainly composed of two end rollers and the closed conveyor belt on the tight sleeve. The drum that drives the conveyor belt to rotate is called driving drum (driving drum); the other drum that only changes the moving direction of the conveyor belt is called changing drum. The driving roller is driven by the motor through the reducer, and the conveyor belt is driven by the friction between the driving roller and the conveyor belt. Generally, the driving roller is installed at the discharge end to increase the traction and facilitate the dragging. The material is fed by the feeding end, falls on the rotating conveyor belt, and is transported to the unloading end for unloading by the friction of the conveyor belt.
Welcome to consult us at any time, we will be the first time to reply!
